Aluminium Angle Bar
Explore Lynox’s durable Aluminium Angle Bar for superior strength and versatility.

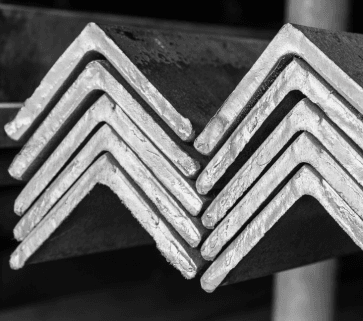

Aluminium angle bar consist of two legs which is the types of equal or unequal lengths and arranged to form a 90 degree angle. Because of the material strength and lightweight construction, these components are suitable for use in structural and general engineering and manufacturing applications across a wide range of industries, including building, construction, and transportation.
- Superior Quality and Durability
- Precision Engineering
- Versatile Finishing Options
Aluminium Angle Bar
Aluminium angle bar consist of two legs which is the types of equal or unequal lengths and arranged to form a 90 degree angle. Because of the material strength and lightweight construction, these components are suitable for use in structural and general engineering and manufacturing applications across a wide range of industries, including building, construction, and transportation.
Grade:6061 / 6063

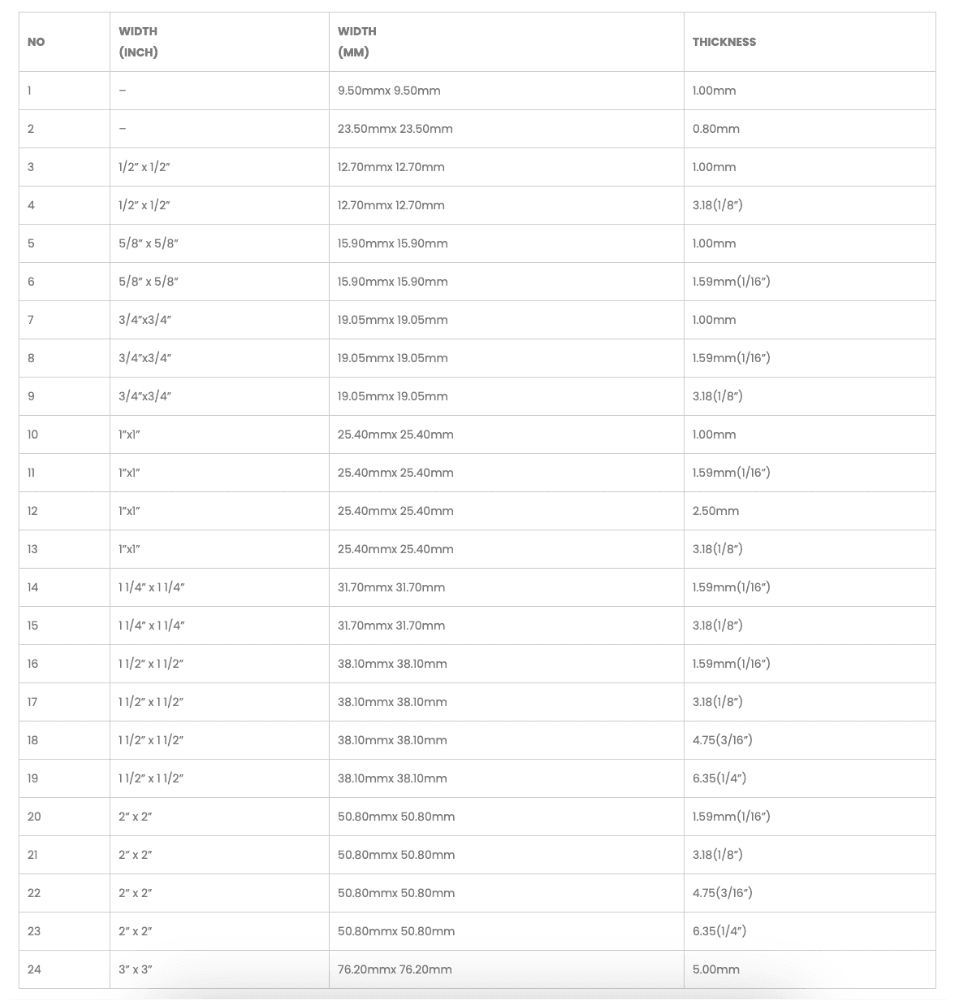

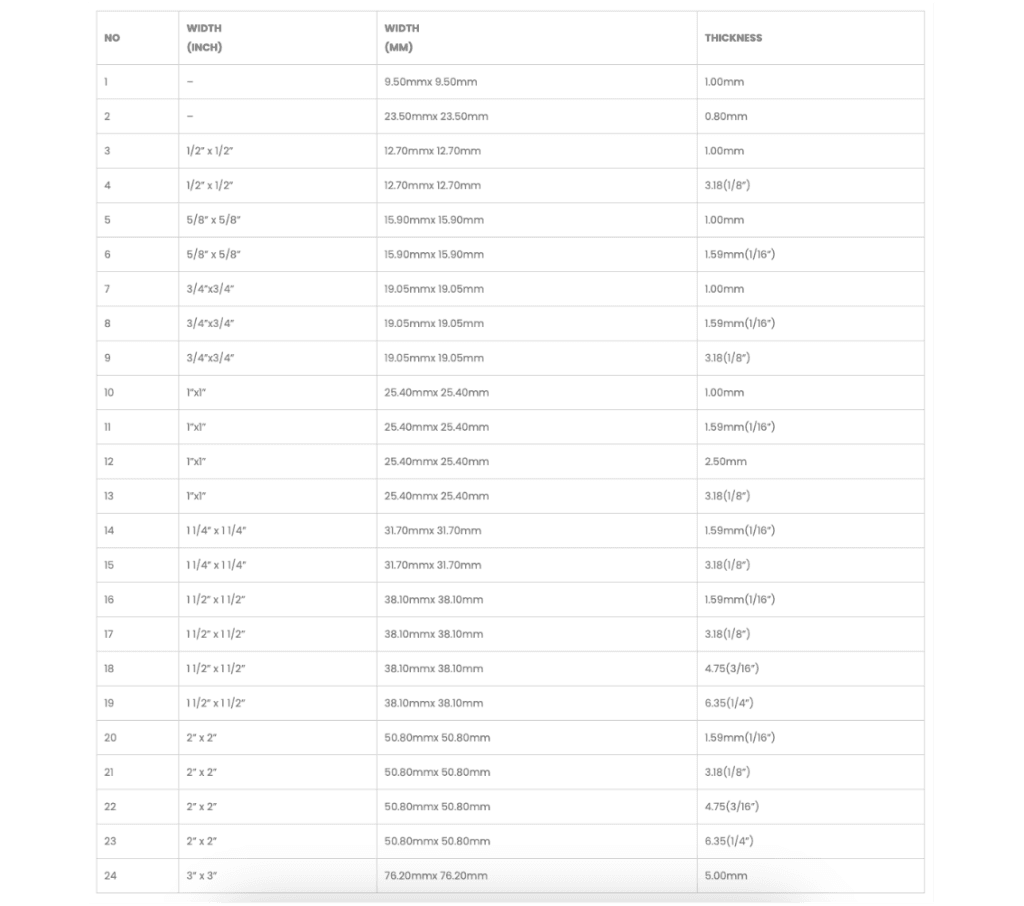

| NO | WIDTH (INCH) | WIDTH (MM) | THICKNESS |
|---|---|---|---|
| 1 | – | 9.50mmx 9.50mm | 1.00mm |
| 2 | – | 23.50mmx 23.50mm | 0.80mm |
| 3 | 1/2” x 1/2” | 12.70mmx 12.70mm | 1.00mm |
| 4 | 1/2” x 1/2” | 12.70mmx 12.70mm | 3.18(1/8”) |
| 5 | 5/8” x 5/8” | 15.90mmx 15.90mm | 1.00mm |
| 6 | 5/8” x 5/8” | 15.90mmx 15.90mm | 1.59mm(1/16”) |
| 7 | 3/4”x3/4” | 19.05mmx 19.05mm | 1.00mm |
| 8 | 3/4”x3/4” | 19.05mmx 19.05mm | 1.59mm(1/16”) |
| 9 | 3/4”x3/4” | 19.05mmx 19.05mm | 3.18(1/8”) |
| 10 | 1”x1” | 25.40mmx 25.40mm | 1.00mm |
| 11 | 1”x1” | 25.40mmx 25.40mm | 1.59mm(1/16”) |
| 12 | 1”x1” | 25.40mmx 25.40mm | 2.50mm |
| 13 | 1”x1” | 25.40mmx 25.40mm | 3.18(1/8”) |
| 14 | 1 1/4” x 1 1/4” | 31.70mmx 31.70mm | 1.59mm(1/16”) |
| 15 | 1 1/4” x 1 1/4” | 31.70mmx 31.70mm | 3.18(1/8”) |
| 16 | 1 1/2” x 1 1/2” | 38.10mmx 38.10mm | 1.59mm(1/16”) |
| 17 | 1 1/2” x 1 1/2” | 38.10mmx 38.10mm | 3.18(1/8”) |
| 18 | 1 1/2” x 1 1/2” | 38.10mmx 38.10mm | 4.75(3/16”) |
| 19 | 1 1/2” x 1 1/2” | 38.10mmx 38.10mm | 6.35(1/4”) |
| 20 | 2” x 2” | 50.80mmx 50.80mm | 1.59mm(1/16”) |
| 21 | 2” x 2” | 50.80mmx 50.80mm | 3.18(1/8”) |
| 22 | 2” x 2” | 50.80mmx 50.80mm | 4.75(3/16”) |
| 23 | 2” x 2” | 50.80mmx 50.80mm | 6.35(1/4”) |
| 24 | 3” x 3” | 76.20mmx 76.20mm | 5.00mm |

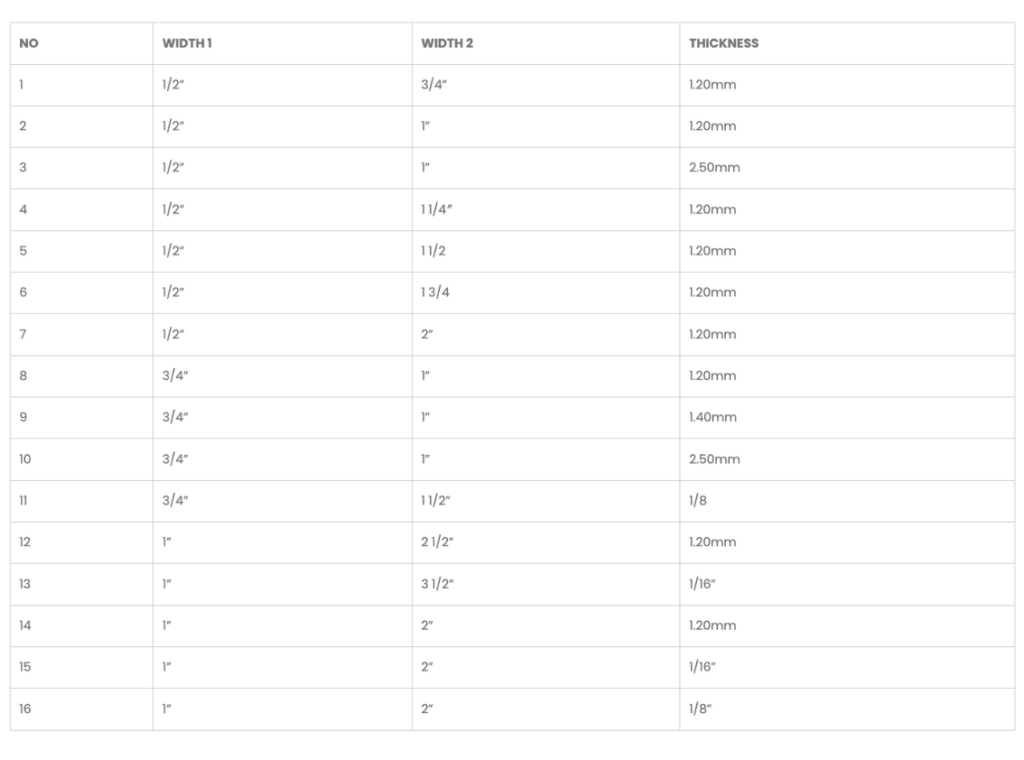

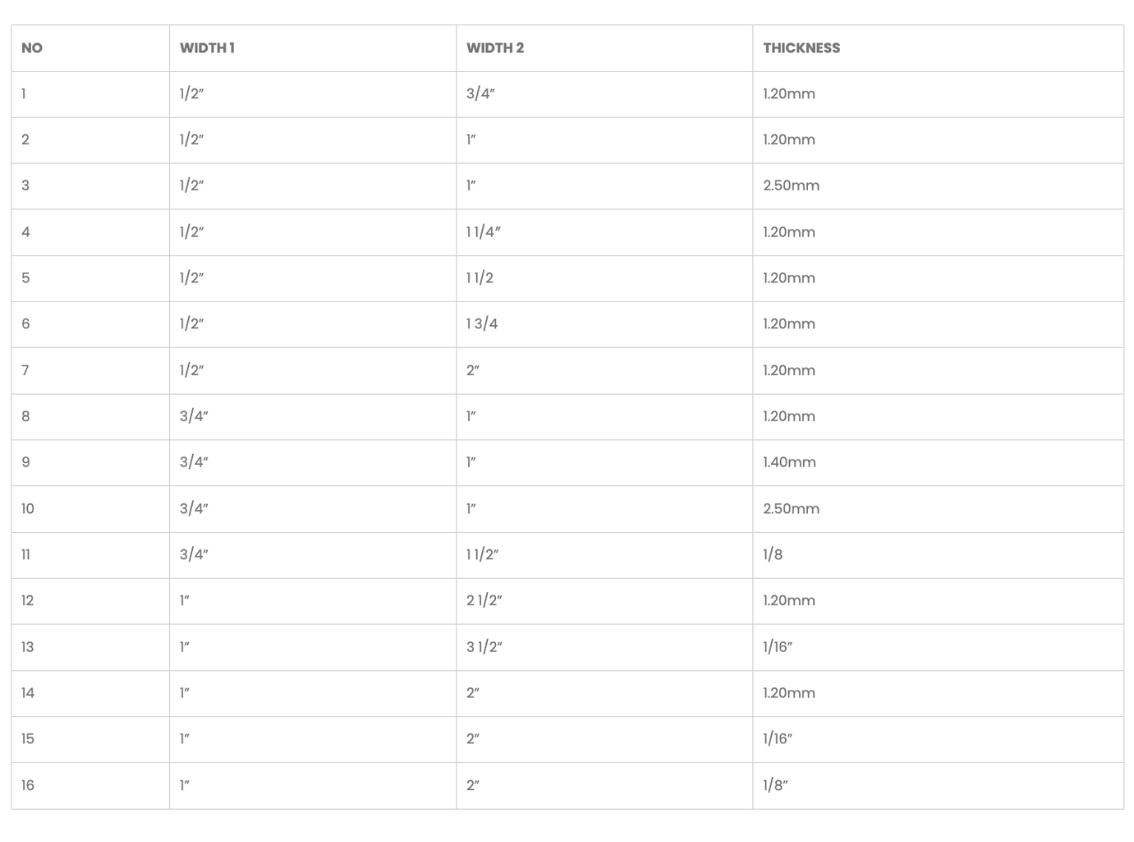

| NO | WIDTH 1 | WIDTH 2 | THICKNESS |
|---|---|---|---|
| 1 | 1/2” | 3/4” | 1.20mm |
| 2 | 1/2” | 1” | 1.20mm |
| 3 | 1/2” | 1” | 2.50mm |
| 4 | 1/2” | 1 1/4″ | 1.20mm |
| 5 | 1/2” | 1 1/2 | 1.20mm |
| 6 | 1/2” | 1 3/4 | 1.20mm |
| 7 | 1/2” | 2” | 1.20mm |
| 8 | 3/4” | 1” | 1.20mm |
| 9 | 3/4” | 1” | 1.40mm |
| 10 | 3/4” | 1” | 2.50mm |
| 11 | 3/4” | 1 1/2” | 1/8 |
| 12 | 1” | 2 1/2” | 1.20mm |
| 13 | 1” | 3 1/2” | 1/16” |
| 14 | 1” | 2” | 1.20mm |
| 15 | 1” | 2” | 1/16” |
| 16 | 1” | 2” | 1/8” |
